Railway Insulation & Rubber Components

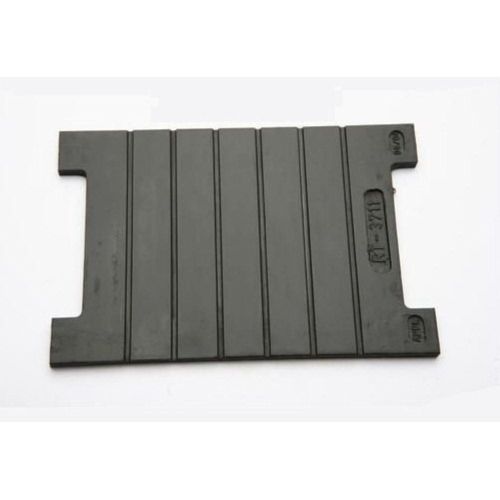

Leading Manufacturers, Wholesaler and Trader of Grooved Rubber Sole Pad, Railway Gfn Liner, Railway Rubber Parts and Railway Track Insulators from Hooghly.
| Business Type | Manufacturer, Supplier, Trader |
| Thickness | 6–15 Mm |
| Material | Synthetic Rubber |
| Application | Vibration Damping, Load Distribution, Cushioning Between Rail And Sleeper |
| Rubber Grade | Railway Grade SBR |
| Hardness | 65–85 Shore A |
| Tensile Strength | 12–20 MPa |
| Elongation At Break | 300–500% |
| Compression Set | ≤25% |
| Density | 1.1–1.4 G/cm³ |
| Length | 150–300 Mm |
| Width | 100–250 Mm |
| Business Type | Manufacturer, Supplier, Trader |
| Thickness | 4–12 Mm |
| Material | Reinforced Polyamide |
| Application | Insulation And Load Transfer Between Rail |
| Material Grade | PA66 + 30% Glass Fibre |
| Rail Compatibility | 52 Kg, 60 Kg & UIC 60 Rail Sections |
| Length | 150–300 Mm |
| Width | 70–150 Mm |
| Compressive Strength | 100–200 MPa |
| Tensile Strength | 80–150 MPa |
| Hardness | 75–90 Shore D |
| Business Type | Manufacturer, Supplier, Trader |
| Material | Synthetic Rubber |
| Application | Vibration Isolation, Cushioning, Insulation, Sealing, Load Distribution |
| Hardness (Shore A) | 60–90 Shore A |
| Tensile Strength | 10–20 MPa |
| Elongation At Break | 300–600% |
| Compression Set | ≤25% |
| Tear Strength | 20–50 KN/m |
| Density | 1.1–1.4 G/cm³ |
| Compression Load Capacity | 50–200 MPa |
| Operating Temperature | -40°C To +100°C |
| Business Type | Manufacturer, Supplier, Trader |
| Application | Electrical Insulation Of Rails And Fastening Systems In Railway Tracks |
| Material Grade | PA66 GF30 |
| Item Includes | Rail Insulators,GFN Liners,Nylon Bushes,Insulating Sleeves,End Post Insulators,Shoulder Insulators |
| Rail Compatibility | 52 Kg, 60 Kg & UIC 60 Rail Sections |
| Dielectric Strength | 10–25 KV/mm |
| Volume Resistivity | ≥10²² Ω·cm |
| Compressive Strength | 100–200 MPa |
| Tensile Strength | 80–150 MPa |
| Impact Strength | 5–15 KJ/m² |
| Hardness | 75–90 Shore D |
